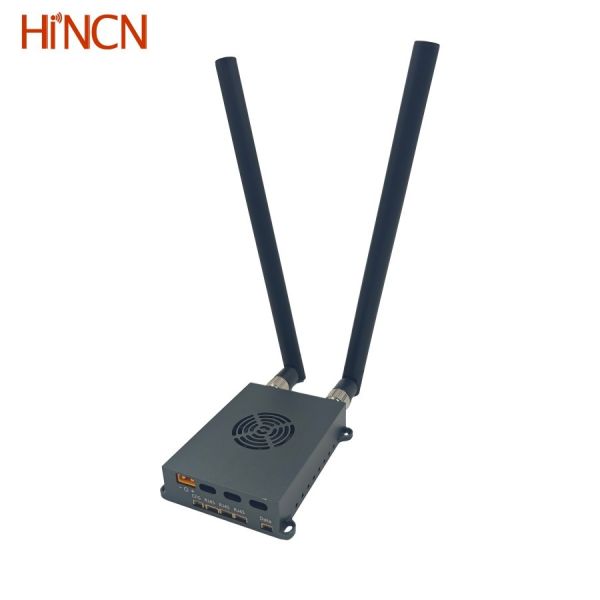

Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission

  • 1
  • 2

Brand Name : Hincn

Model Number : HCL601

Place of Origin : China

MOQ : 1 set

Price : US$1,178~US$1,268

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 799pcs/month

Delivery Time : 7~14 working days

Packaging Details : Canned and packaged in cardboard boxes

Modulation : TDD OFDM/ COFDM

Frequency : 566~678MHz or 1420~1530MHz

RF Power : 300mW *2( Each 300mW of the 2 antennas)

Sensitivity : -102dBm(1Mbps at 20MHz)

Encryption : AES128-bit

OEM/ ODM : Support

Contact Now

Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission

Key Features
  • TDD OFDM wireless transmitter and receiver suitable for Drone UAV UGV video data Link
  • Supports point to point and point to multipoint networks
  • Control by web browser or control uart
  • 3 Ethernet and 1 channel RS232/TTL for drone data link
  • Wireless video data transmission with 300mW*2 RF power amplifier
  • Uplink and downlink stream control

Overview

Hincn HCL601 transmitter and receiver for drone operates in the 600MHz or 1.4GHz bands with bidirectional wireless data link, and frequency hopping spread spectrum technology (FHSS) make it has better stability of signal communication.


Technical Specifications
Product name Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission
Model number HCL601
Modulation TDD OFDM/ COFDM
Frequency 566~678MHz band and 1420~1530MHz band
Bandwidths 3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF transmission Power 300mW *2 (Each 300mW of the 2 antennas)
Constellation QPSK,16QAM,64QAM, self-adaption
Sensitivity -102dBm(1Mbps at 20MHz)
IP data transmission 3 Ethernet ports
Serial data transmission 1 channel RS232 or TTL
Transmission range 1~2km (ground to ground), 5~22km (UAV to ground)
Management Trough Web UI or Control uart
Encryption AES128-bit encryption
Network mode Point-to-Point, Point-to-Multipoint, Relay, and Mesh(specify)
Movement speed Support no less than 120km/h
Power input 7~18V
Power consumption <8W
Dimensions 83.7*61.4*19 mm
Weight 98g
Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission
Input/Output Connections
Connection Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART, 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female



Wireless networking modes:

HCL601 supports two operation modes: access node or central node. It can be managed through web UI. Supports up to 63 access nodes connected to one central node. All nodes are in the same wireless local area network and share the entire transmission bandwidth (up to 100Mbps throughput).

Data from the central node to the access node is called the downlink; data from the access node to the central node is called the uplink. Stream ratio of the uplink and downlink can be controlled through the Web UI. When using it for point-to-point transmission, the uplink and downlink also share the entire transmission bandwidth (up to 100Mbps throughput).

The supported networking modes include: point-to-point, point-to-multipoint, relay and mesh.

Frequently Asked Questions


Q1. Does this transmitter and receiver for drone support any other cameras except IP camera?
A: IP camera video can be connected with it directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with it via Ethernet connection.
Q2. Does the model have a more advanced version that supports longer-distance video data transmission?
A: Yes, HCL602 and HCL605 radio devices support much longer range, support up to 100km wireless video data transmission.
