Brand Name : Hincn
Model Number : HCL6-M
Place of Origin : China
MOQ : 1set
Price : US$1,399.00~US$1,499.00
Payment Terms : ,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability : 899 pcs/month
Delivery Time : 7~14 working days
Packaging Details : carton package
Modulation : TDD OFDM
Frequency : 566~678MHz, 1420~1530MHz
Encryption : AES128
RF Power : 24± 1dBm* 2 channels
Network mode : Point to Point, Point to Multipoint, Relay, Mesh
Throughput : Maximum 100Mbps
HCL6-M video transmitter and receiver module is designed for video data wireless transmission with two way wireless data link. This OFDM radio module works at 600MHz and 1.4GHz bands, with frequency hopping technology (FHSS) to ensure the stability of signal transmission.
| Name | COFDM MESH Network Wireless Broadband Ethernet Video Transmitter and Receiver Module |
|---|---|
| Modulation | TDD OFDM |
| Model number | HCL6-M |
| Frequency | 566~678MHz, 1420~1530MHz |
| FHSS | Support FHSS inside each band |
| Bandwidths | 1.4/3/5/10/20MHz |
| Throughput | Maximum 100Mbps |
| RF Transmission Power | 24± 1dBm* 2 channels |
| Constellation | QPSK, 16QAM, 64QAM self adaption |
| Sensitivity | -95dBm (20MHz bandwidth) |
| Ethernet port | 3 * Ethernet ports for IP data transmission |
| Serial port | 1 * RS232 for serial data transmission |
| Transmission Range | Up to 22km LOS (UAV to ground), and 2km LOS(ground to ground) |
| Management | Web UI and Control Uart |
| Encryption | AES128 |
| Networking Mode | Point to Point, Point to Multipoint, Relay, Mesh |
| Power Consumption | <7W |
| Modem Dimensions | 80*57*9.1mm |
| Modem Weight | 41g |
| Working Temp. | -20℃ ~ +65℃ |
| Storage Temp. | -40℃ ~ +80℃ |
| Power in | 2PIN PH2.0mmConnector, DC in:9~30V |
|---|---|
| Ethernet 1 | 4PIN PH1.25mm Connector |
| Ethernet 2 | 4PIN PH1.25mm Connector |
| Ethernet 3 | 4PIN PH1.25mm Connector |
| Data uart | 3PIN PH1.25mm Connector, RS232(or TTL 3.3V) |
| Control uart | 3PIN PH1.25mm Connector, TTL 3.3V |
| Audio input and output | 4PIN PH1.25mm connector |
| USB | Micro USB connector, for software upgrading |
| Switch | TX/RX control signal for outside power amplifier |
| Main-Antenna | TX/RX antenna port, IPEX |
| Second-Antenna | TX/RX antenna port, IPEX |
| 12V out | On board 12V out (<200mA), for cool fan power supply |


The HCL6-M ethernet video transmitter and receiver module supports two operation modes: access node mode or central node mode. It can be managed through the network user interface or by sending AT commands via the control Uart. It supports the function of up to 63 access nodes connecting to one central node. All nodes are in the same wireless local area network and share the entire transmission bandwidth (maximum 100Mbps transmission rate). The data from the central node to the access node is called downlink data, and the data from the access node to the central node is called uplink. The ratio of uplink and downlink data streams can be controlled through the network user interface or AT commands. When using it for point-to-point transmission, the uplink and downlink data streams also share the entire transmission bandwidth (maximum 100Mbps transmission rate).
|   |

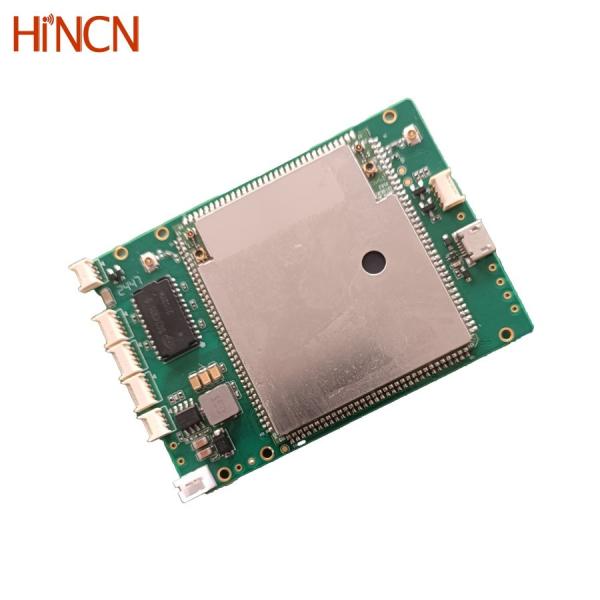

| COFDM MESH Network Wireless Broadband Ethernet Video Transmitter and Receiver Module Images |
